AC 8612 Boiling Point Distribution

The PAC Powered by AC AC8612 application delivers ASTM D86 correlated data for naphtha and gasoline samples within ASTM D86 groups 0, 1, and 2 in 15 minutes. It is based on fast detailed hydrocarbon analysis (DHA) and uses the PAC proprietary Fugacity Film Calculation Model for reporting accurate D86 correlated data.

Key Features

1. Offers operator-independent results that are in line with good laboratory practice

2. Exceeds repeatability requirements of D86 method, resulting in less product giveaway

3. Dedicated AC quality control samples to assist in calibration and system validation, ensuring maximum accuracy

4. Incorporates True Boiling Point (TBP) reporting

Product Overview

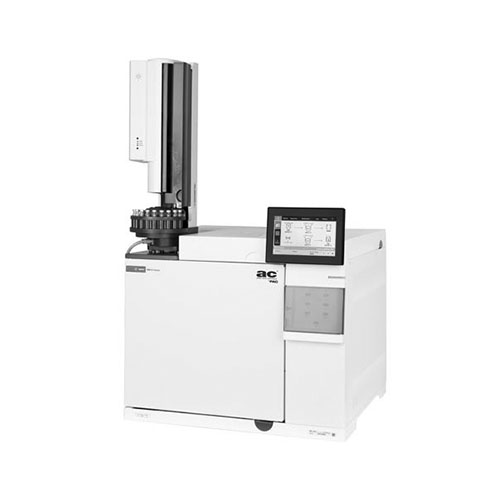

The application resides on an easy-to-use, compact Agilent Technologies 6850 gas chromatograph, configured with:

A flame ionization detector (FID)
A split/splitless inlet
An automatic liquid sampler

Specs

Analysis Scope

Sample Matrix: Naphta, Gasoline, Reformate, Alkylate, and FCC

Analysis range:
<C15
D86 BP Range groups 0, 1 and 2

Precision: D86
